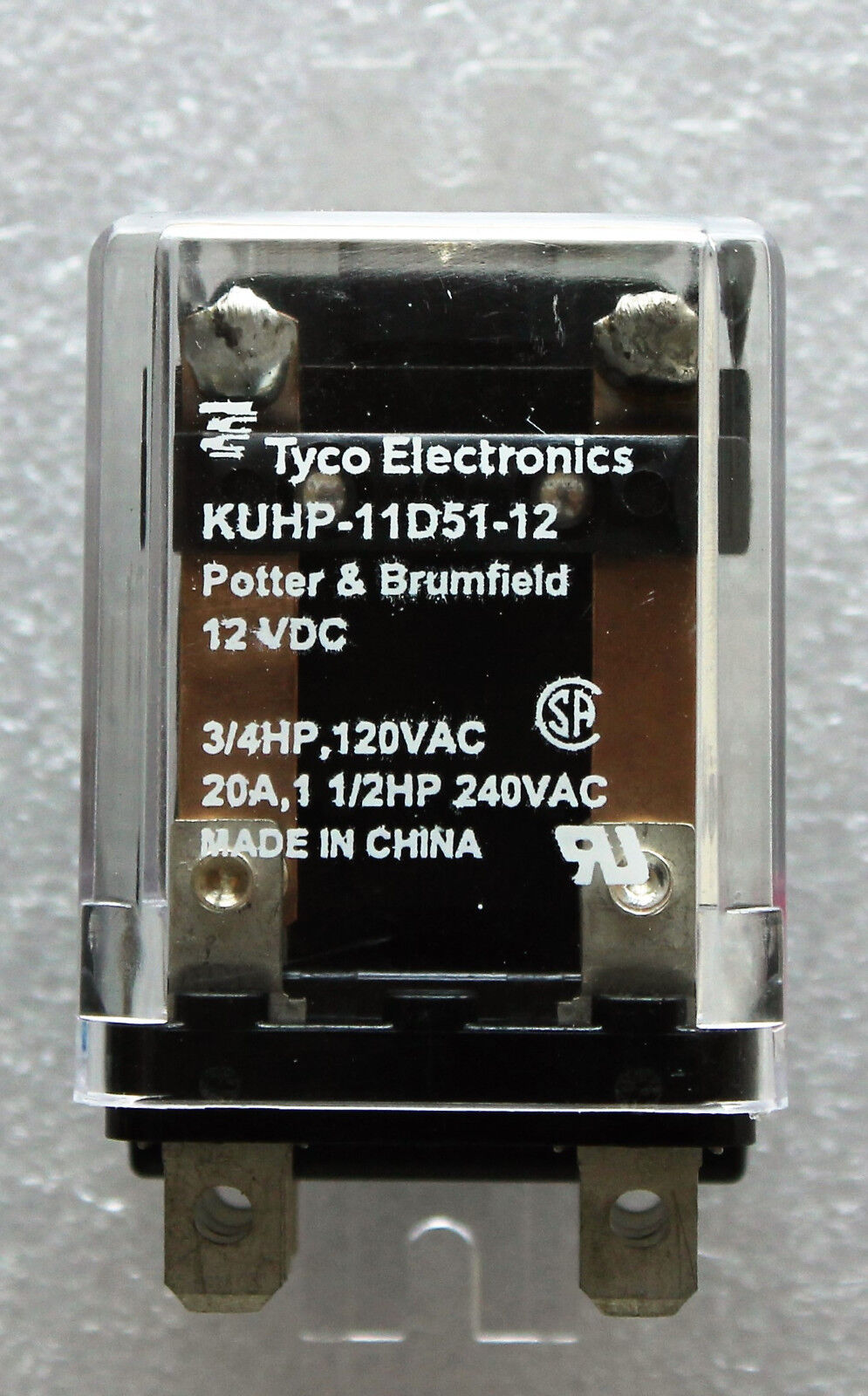

NEW TYCO POTTER & BRUMFIELD KUHP-11D51-12 12VDC 20A DPDT POWER RELAY

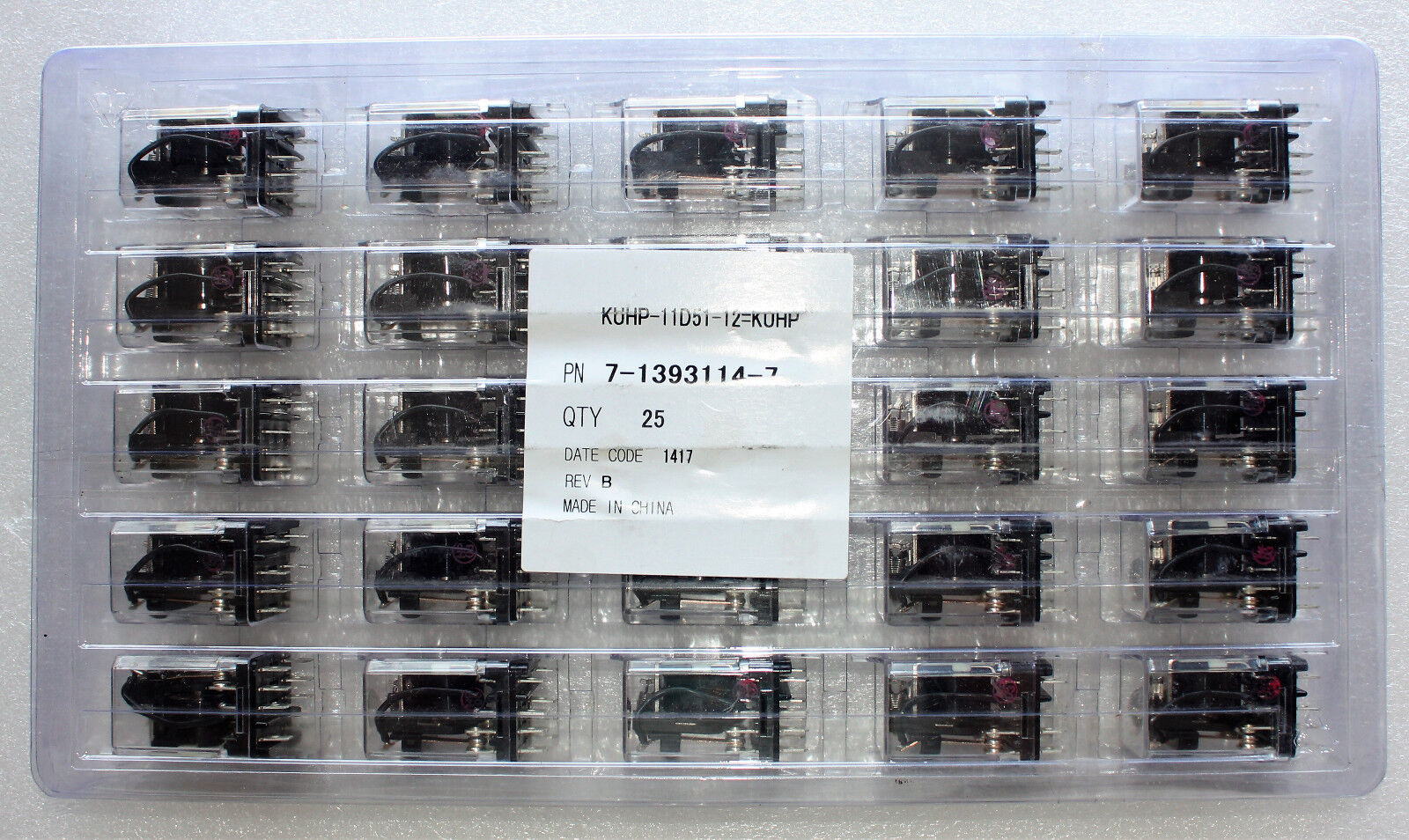

One New Laboratory Surplus Potter & Brumfield Tyco Electronics KUHP-11D51-12 Relay. These relays came in bulk packaging from the manufacturer shown in the last photo. These relays are in excellent operational and cosmetic condition.
Specifications:
| Coil Voltage | 12 V |
| Contact Configuration | DPDT |
| Switching Current | 20 A |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Series | KUHP |
| Coil Resistance | 120 Ω |
| Application | Power |
| Length | 73.66mm |
| Depth | 35.7mm |
| Height | 38.89mm |
| Dimensions | 73.66 x 35.71 x 38.89mm |
| Operating Temperature Range | -45 → +70°C |
| Minimum Operating Temperature | -45°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Alloy |
