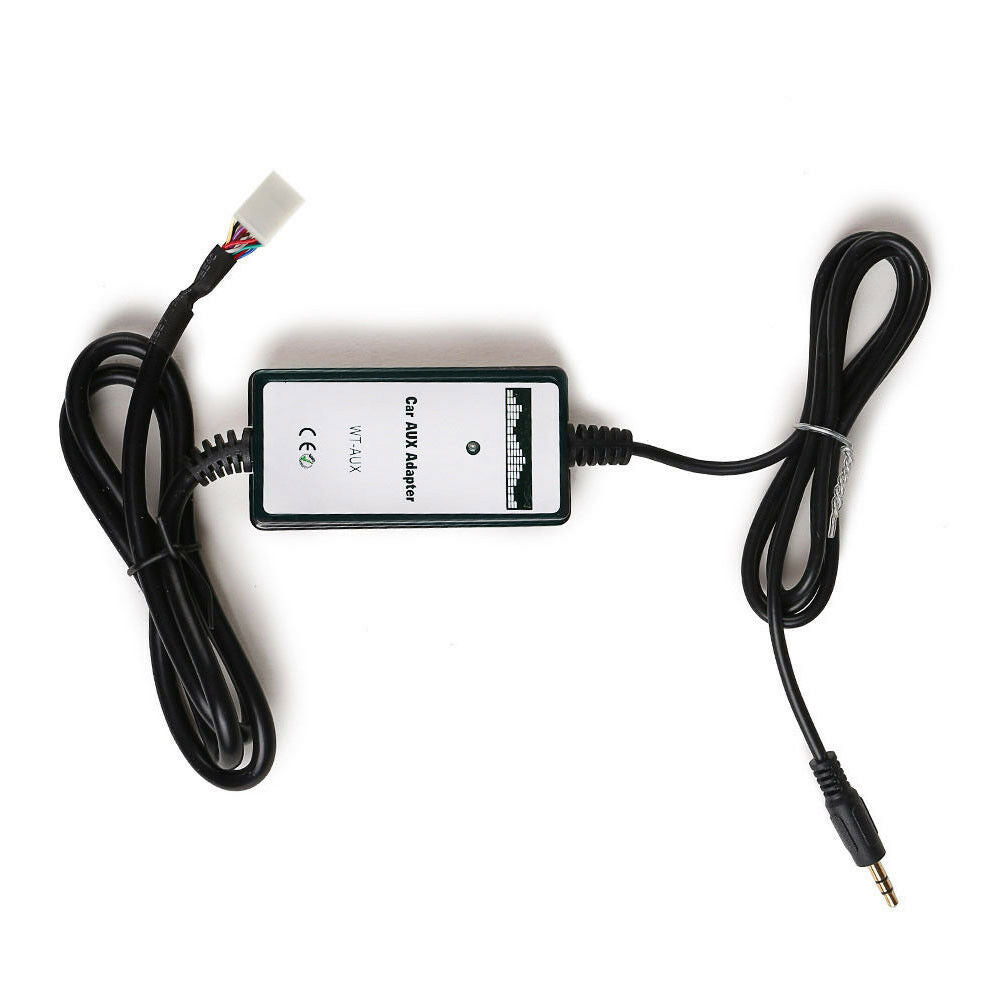

MP3 Player Radio Interface Aux In Input iPod Adapter for Toyota Lexus Camry Corolla Yaris 2003+

Specifications:

• Item type: Cables, adapters & sockets
• Voltage input: DC 12V
• Signal-to-noise: 95DB
• Max. current: 600mA
• Frequency response: 20HZ-20KHZ
• Working temperature: -10-80 Celsius degree
• Total Harmonic Distortion:0.01%
• Package size: 15 * 10 * 4cm
• Package weight: Approx. 132g

Feature:

1. Best sound quality from High quality Power amplifier chip and by using the CD changer port connection
2. Jack-Connection
3.  Plays MP3 and WMA files
4.  Plug & play installation
5.  Be able to connect an external audio source like:
     a. MP3-Player
     b. Portable DVD-Player
    c. Mini Disk-Player
    d. Notebook/Tablet
    e. iPhone /iPod/iPhone
    f. Mobile Phone, such as HTC, Nokia, Samsung etc.
    g.PSP
6. Brand New and High Quality


Compatible with:

Toyota 2x6P connector
4Runner 2003-2010,
Avalon 2005-2010,
Camry 2005-2010,


Celica 2003-2010,
Corolla 2005-2011,
FJ Cruiser 2007-2010,
Highlander 2004-2010,
Landcruiser 2003-2010,
Matrix 2003-2010,
MR2 2004-2010,

RAV4 2003-2010,
Sequoia 2005-2010,
Sienna 2004-2010,
Solara 2004-2010,
Tacoma 2005-2010,
Tundra 2004-2010,
Venza 2009-2010,
Vitz 2006-2010,
Yaris 2006-2010

Installation Instructions:

1.  Turn off car engine and remove key from ignition, if your radio use a security code,
make sure that you have the code before unplugging the radio.
2.  Unmount the radio from the dash and find CD changer port at the back of radio.
3.  Plug the IPOD AUX Adapter connector to CD changer port.(For Audi/V.W/Skoda/Seat radio,connect the GND cable to the shield of the radio)
4.  For IPOD/Iphone user,connector IPOD/Iphone via IPOD AUX Adapter 30P connector.once the unit is installed just power on the car radio and ipod,you can Press CD button,then you can enjoy the IPOD Music ,keep Ipod changed and ready to go.
5.  For Auxiliary device such as PSP,MD.MP3.mobile etc,connect it with 3.3 Jack cable. It will start play music.

Package List:

1 * USB Car Adapter
