HDMI USB TV Input Driver Board for B156XW04 40-pin LCD Panel Video Audio Control
A great set of easy-reassembling LCD controller kit which is used to turn a bare B156XW04 LCD panel into monitor. You will be a surprised that bare LCD will be in good use.
Important Note:
- This kit only for B156XW04 (V0, V1, V5, V6) LCD panel
- Supplier may update converter, LVDS cable and LCD controller board sometimes, so they may not be same as the picture
- If you are not specialized in electronics or have doubts in operation, please CONTACT US, we are not responsible for wrong operation

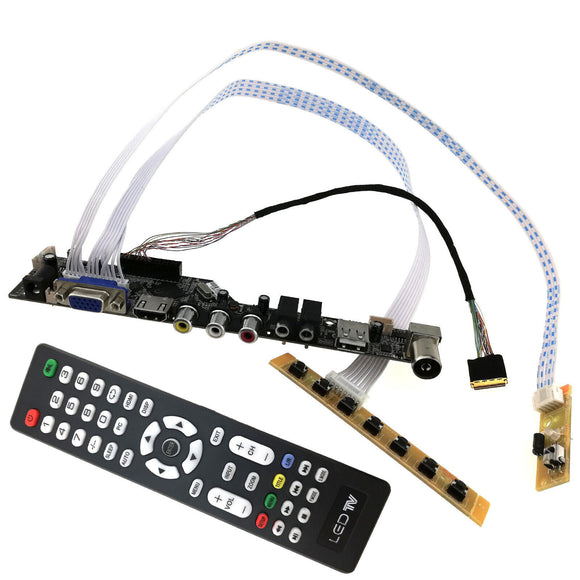

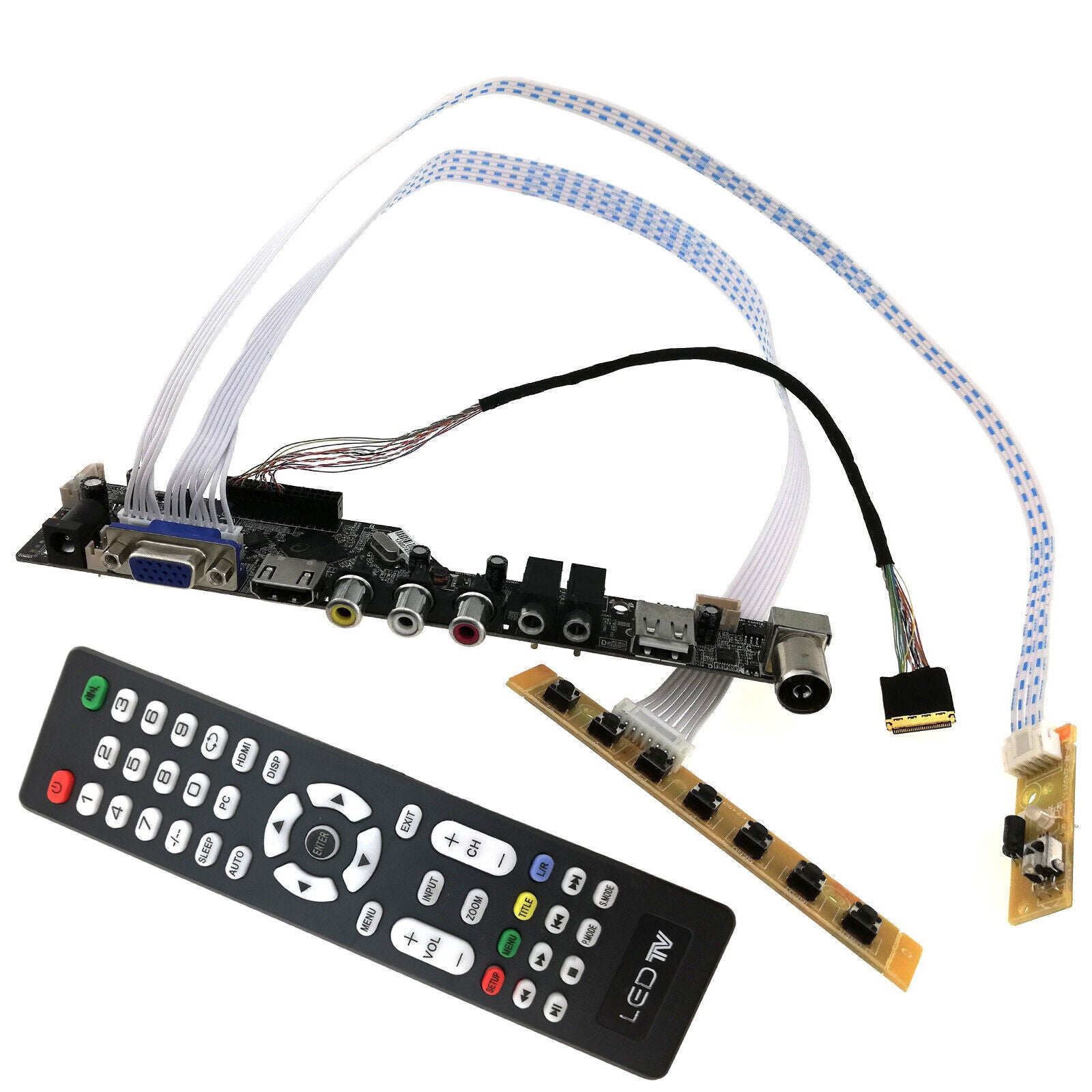

Packing List (bulk pack):
- 1 x Controller

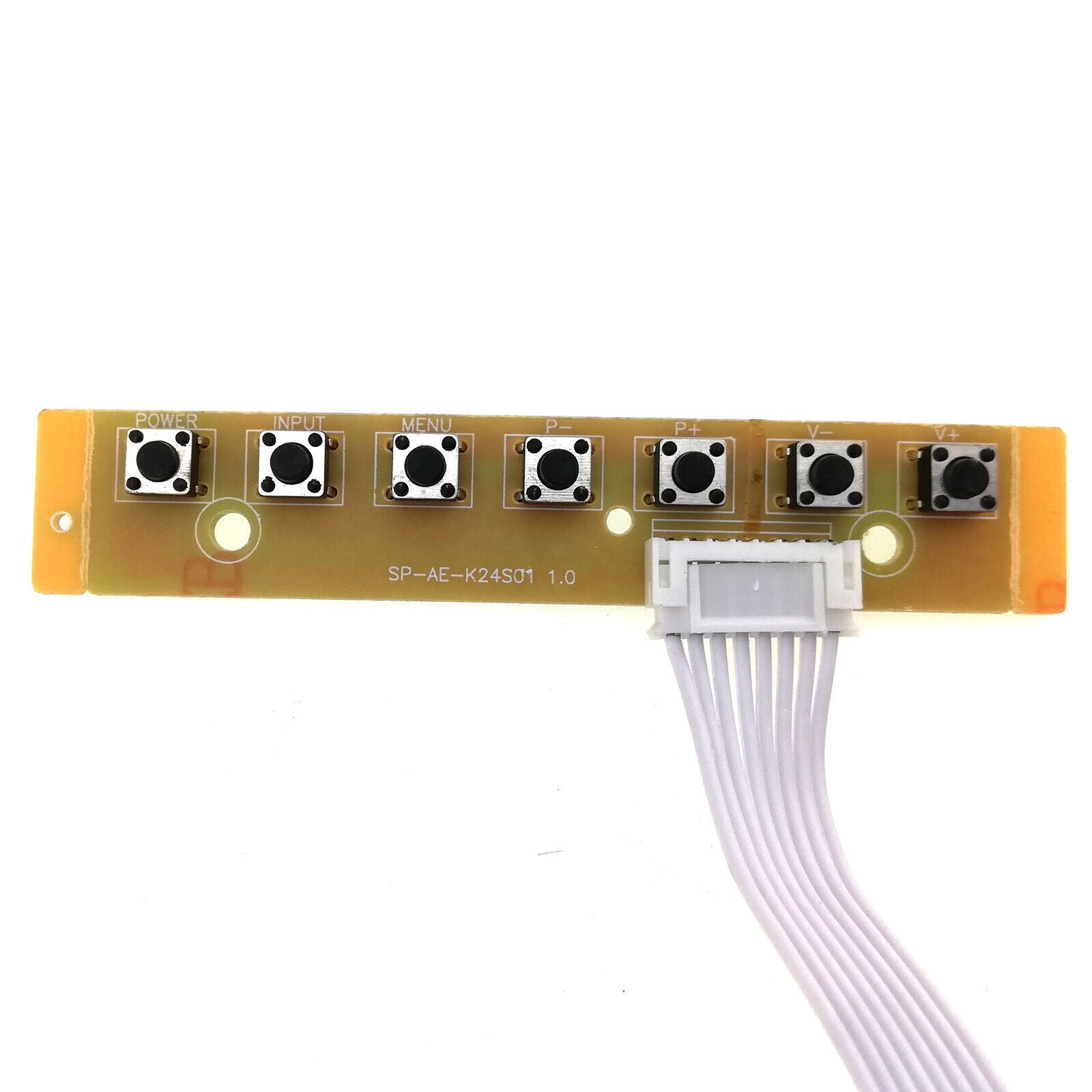

- 1 x Menu panel (with IR sensor)

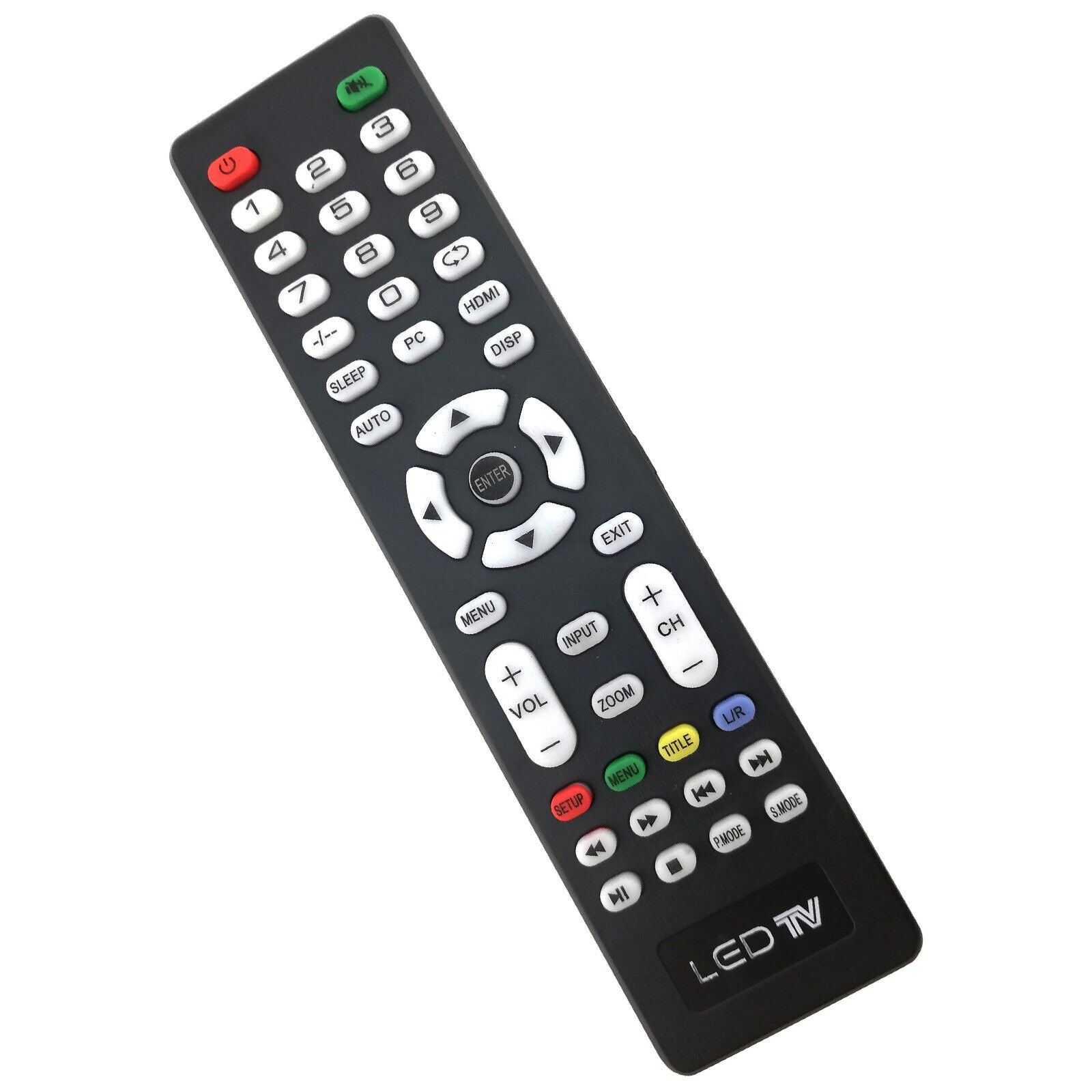

- 1 x Remote controller (not included battery)
- 1 x LVDS cable (40-pin)
Features:
- Support HDMI, VGA, USB, RCA video input
- TV port for TV tuner input, NOT built-int TV tuner
- 3.5mm jack support audio input and output
- Synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated
- Support dynamic contrast control, headphone input and digital volume control simultaneously
- Size of driver board: 190mm x 40mm x 15mm
How to Use:
- Take away the old inverter and old LVDS cable from LCD panel.
- Connect the new inverter and LVDS cable to your LCD panel.
- Connect controller board with PC by VGA/ HDMI cable.
- Do not connect the lvds cable wrongly, wrong connection will get your LCD burnt.
- Test GND, and red/ black wires by mulit-meter.
- Input power of 12V 3A.
