Electric Power Automatic Antenna for Cadillac Seville Deville El Dorado Car SUV AM FM Radio Mast Aerial 12V
- Stainless steel mast, a good AM / FM acceptable performance, the operating current of less than 0.5A.
- Low noise. Noise less than 50DB, the service life of more than 50,000 times greater than the top edge 4KG.
- Waterproof performance, easy to install, optional multiple mounting head.
- Built-in imported micro relays, 3C-2V coaxial cable, cable length according to customer set.
- Economy car automatic antenna
- Five stainless steel mast
- FM radio works well
- Easy installation
Specification
- Condition: 100% Brand New, Professional Design
- Model: BF-686
- Working voltage: DC12V
- Voltage Range: DC10V-14V
- Current: 0.7 ± 0.2A

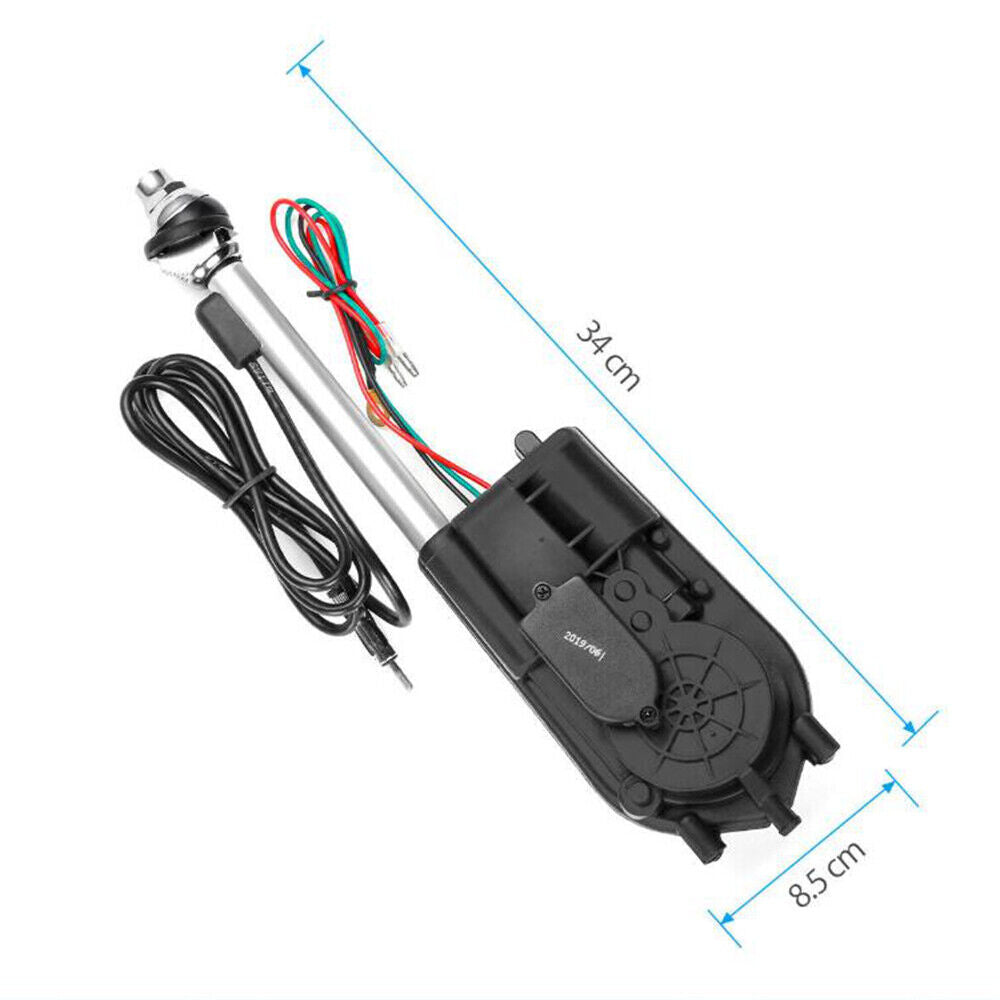

- Size: 330x90x50cm
- Stretch Length: 990mm
- Installed location: front fender
- Working principle: PCB control
- Antenna number: 5 sections
- Mast Material: Stainless Steel
- Antenna stem material: SUS304

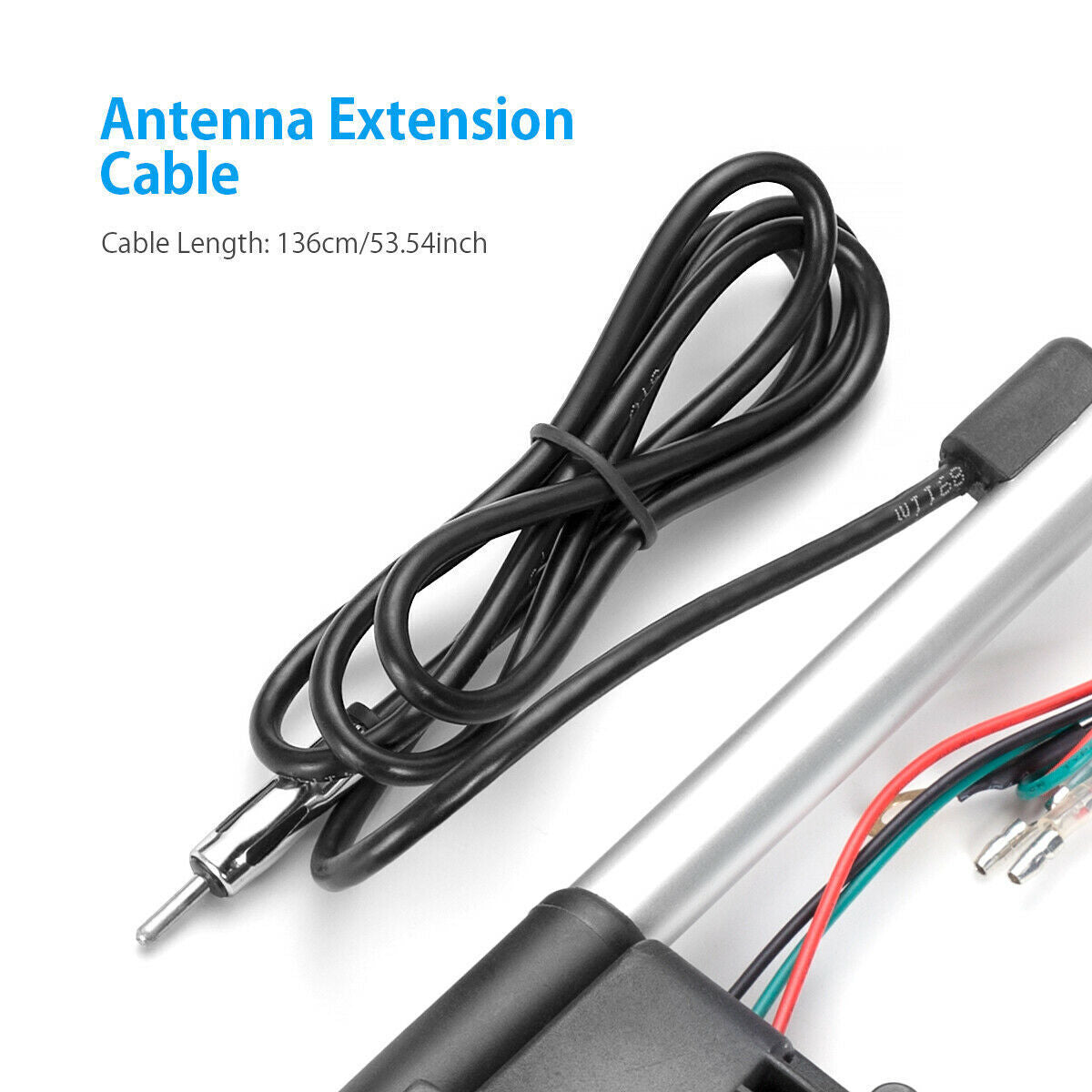

- Cable: 75ohms cables, line length 1.5m
- Plug: ISO DIN plugs
- Installation Angle: 30°, 23°, 15°, 8°, 3°

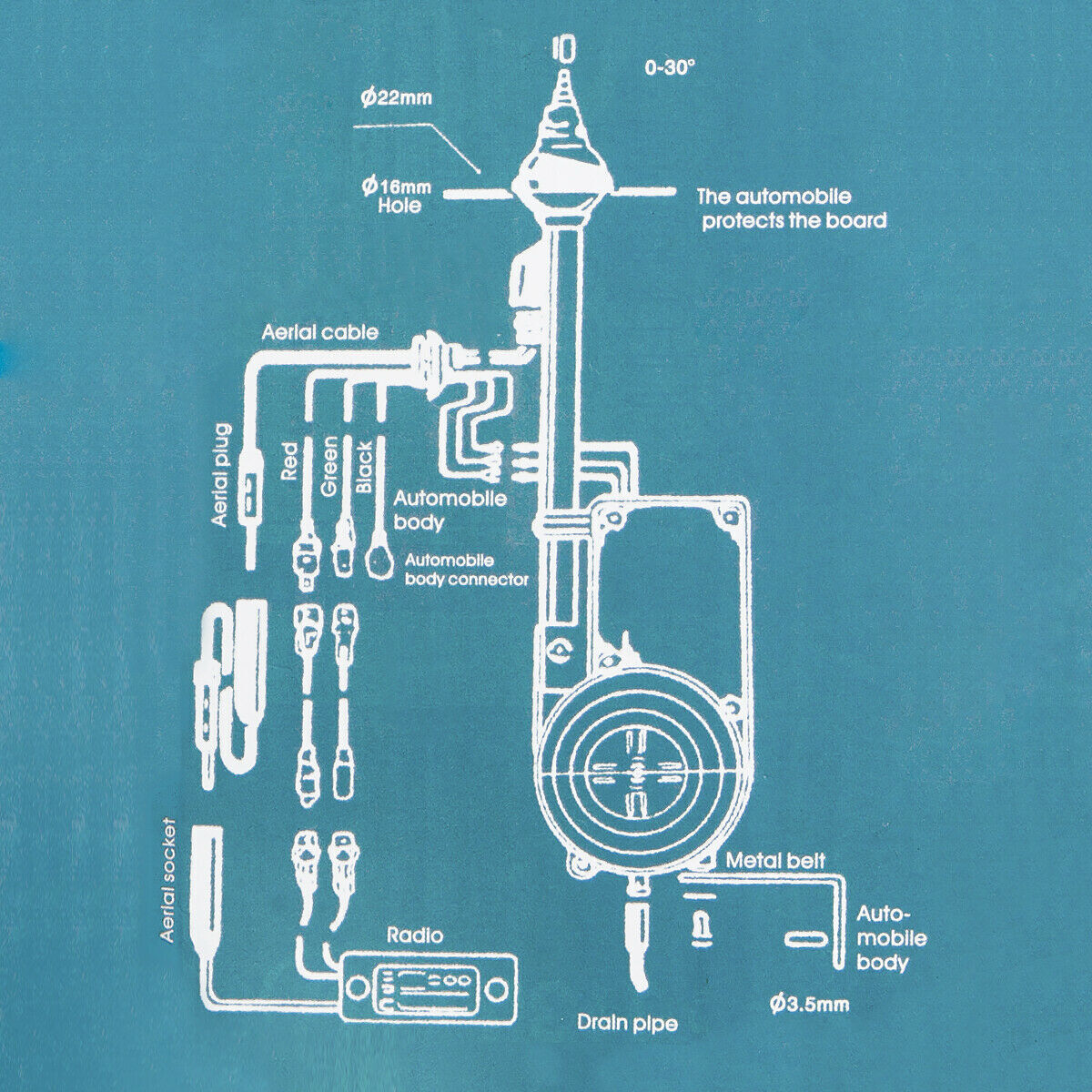

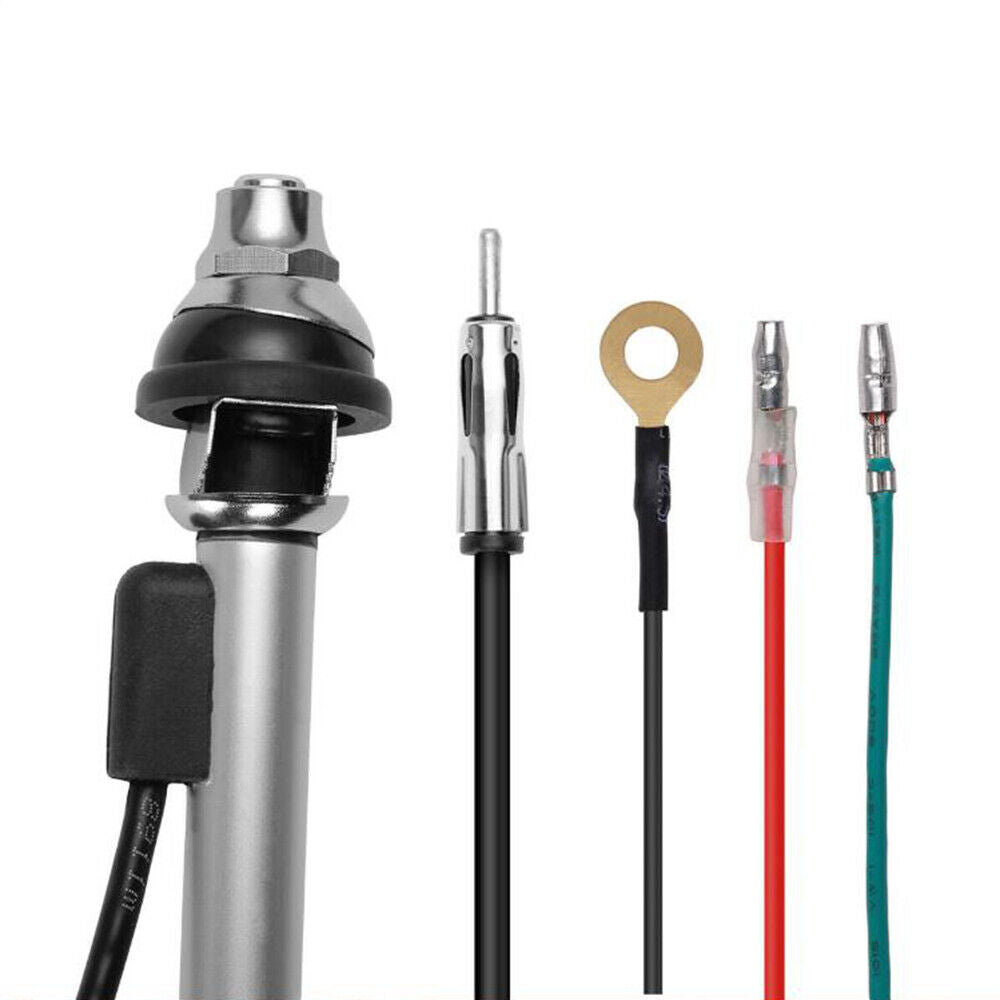

Wiring (three) connection:
Red wire to the positive power supply;
Black wire with grounding lug;
Green line has two configurations: one is a direct positive power supply, so that the antenna with the power-off and landing, one is connected to another control lines, so the antenna can always control movements.
