Display LBL-VLGS7241 for Concept 2 Rower PM5 Performance Monitor Repair

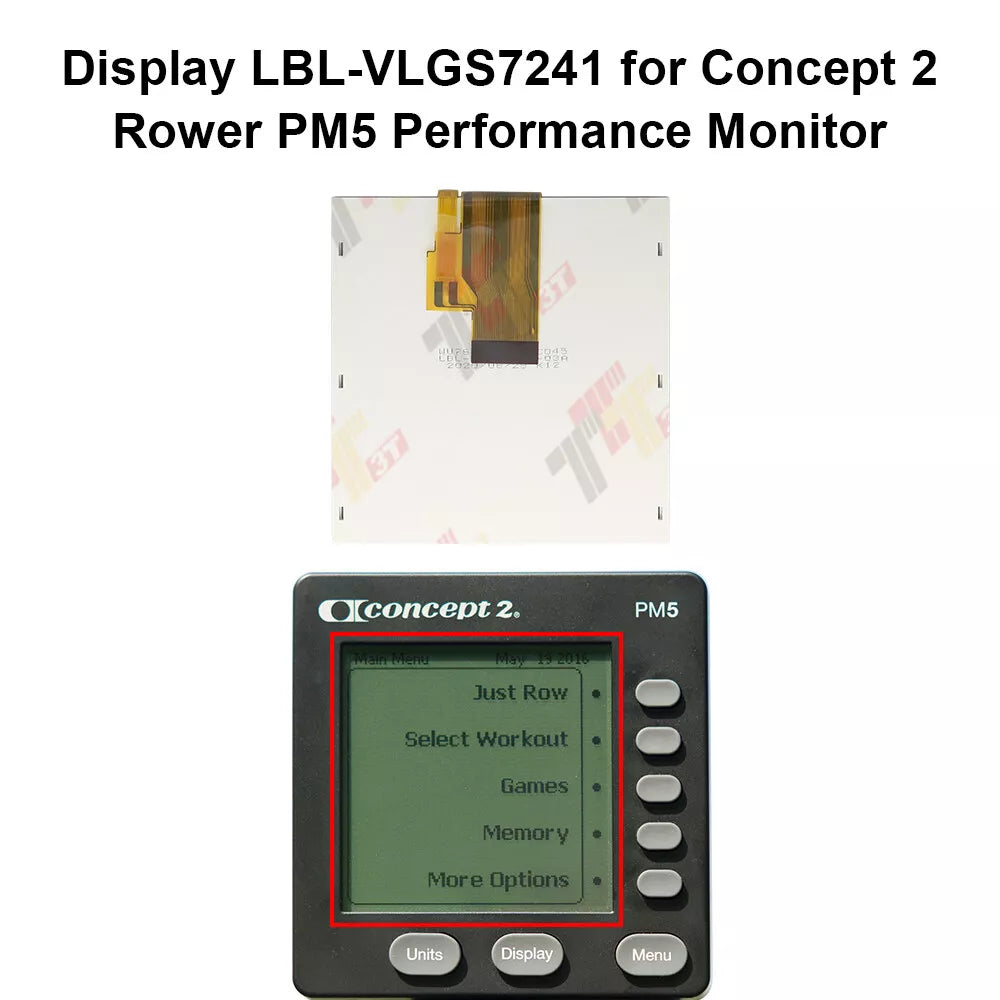

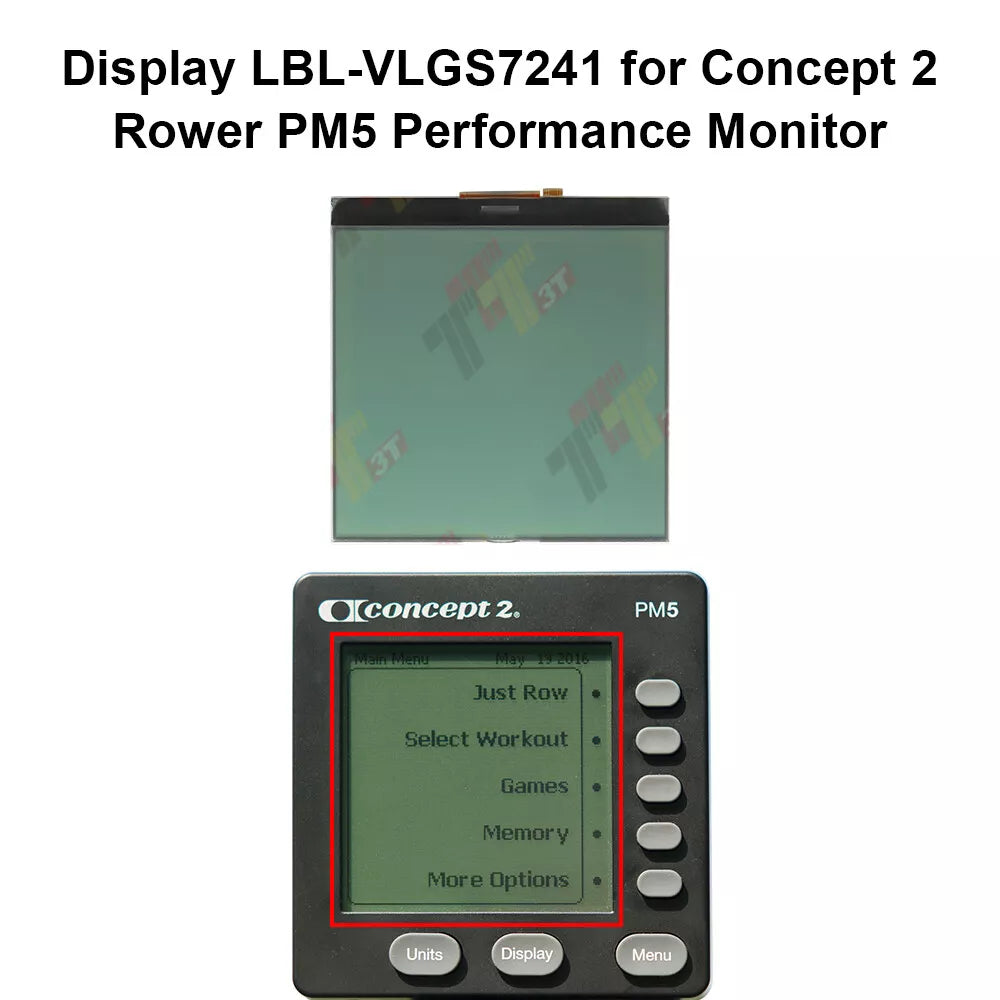

Display LBL-VLGS7241 for Concept 2 Rower PM5 Performance Monitor

Application:
Concept 2 Rower PM5 Performance Monitor

Screen OEM Numbers:

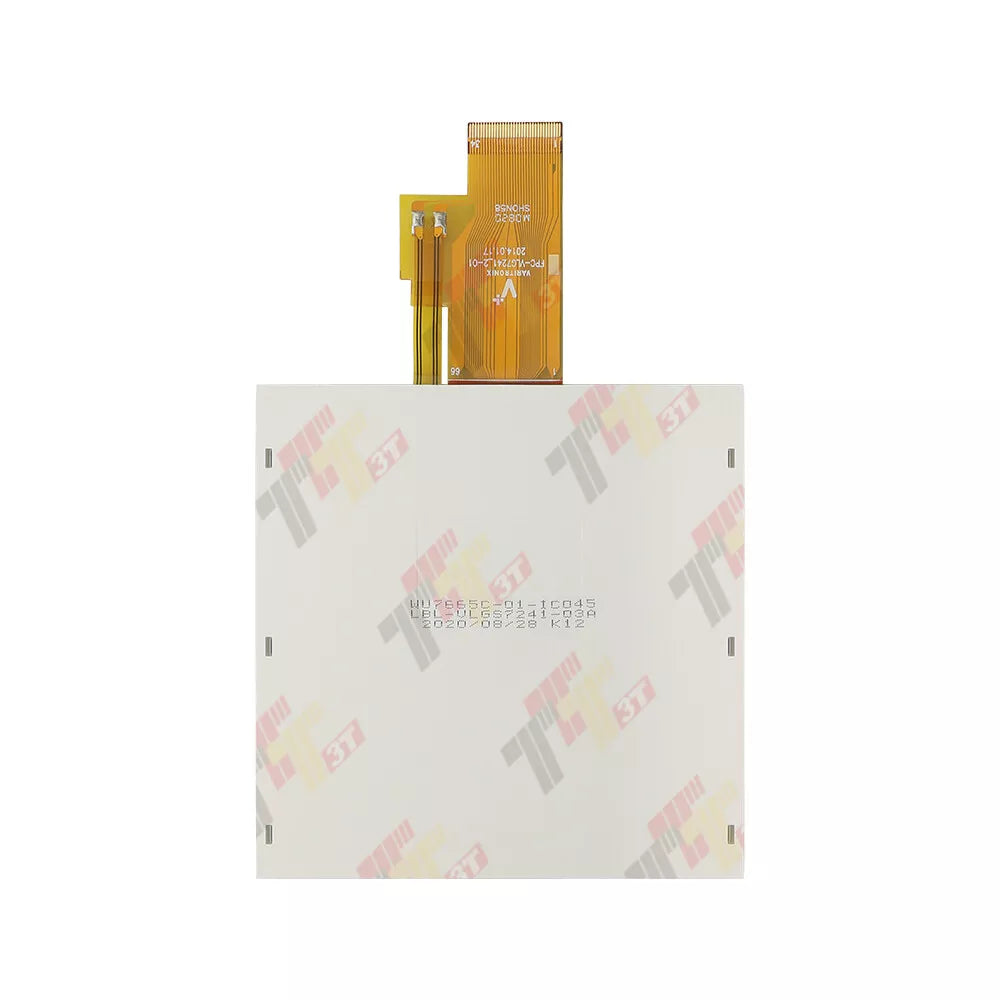

LBL-VLGS7241, WU7665C-01-1C045

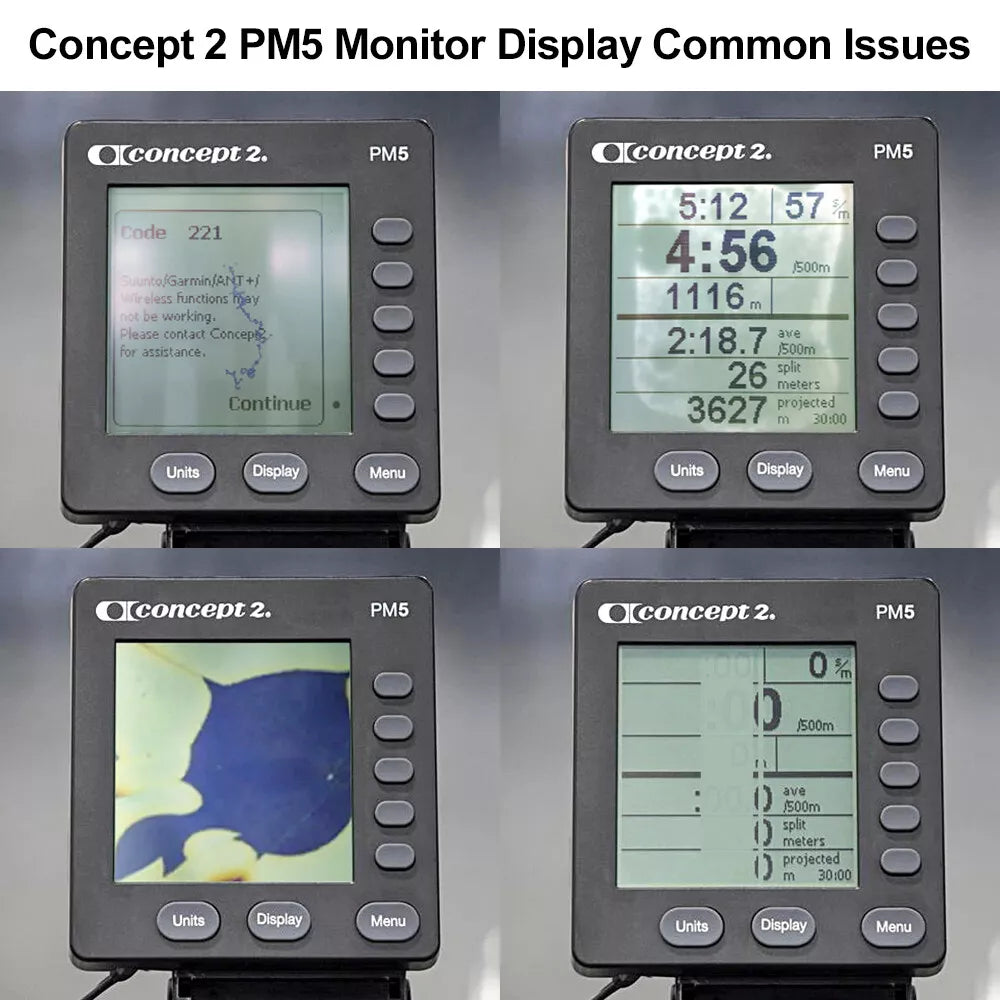

If your display broken, flickering or out of function, faded out segments that replace our new display will solve your problem.

Display we selling only fit to PM5 models, not work at PM3 PM4 or other models.

Easy to fit by placing the Monitor face down on a clean flat surface and removing the batteries. Next remove the screws that hold the rear cover in position and place the rear cover to the side. Carefully unplug the flat Ribbon Connector and remove the Circuit Board placing it to one side. Now you can lift off the Rubber Elastomeric Keypad and finally lift out the LCD Display Screen. Refitting is the reversal.

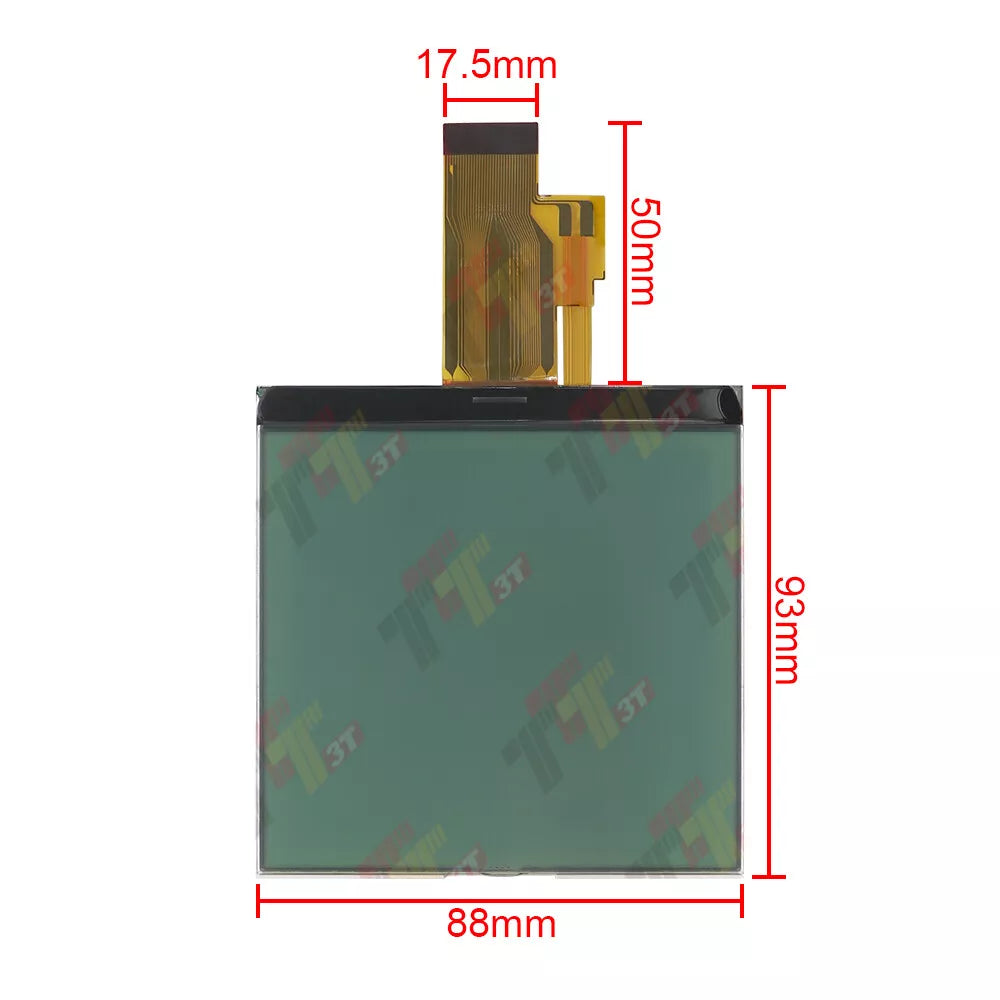

Screen Size: 93*88mm

Package Included:
1PCS LCD Display
We selling LCD display only, the performance monitor in picture as an application scenario instruction, not included for sale.
