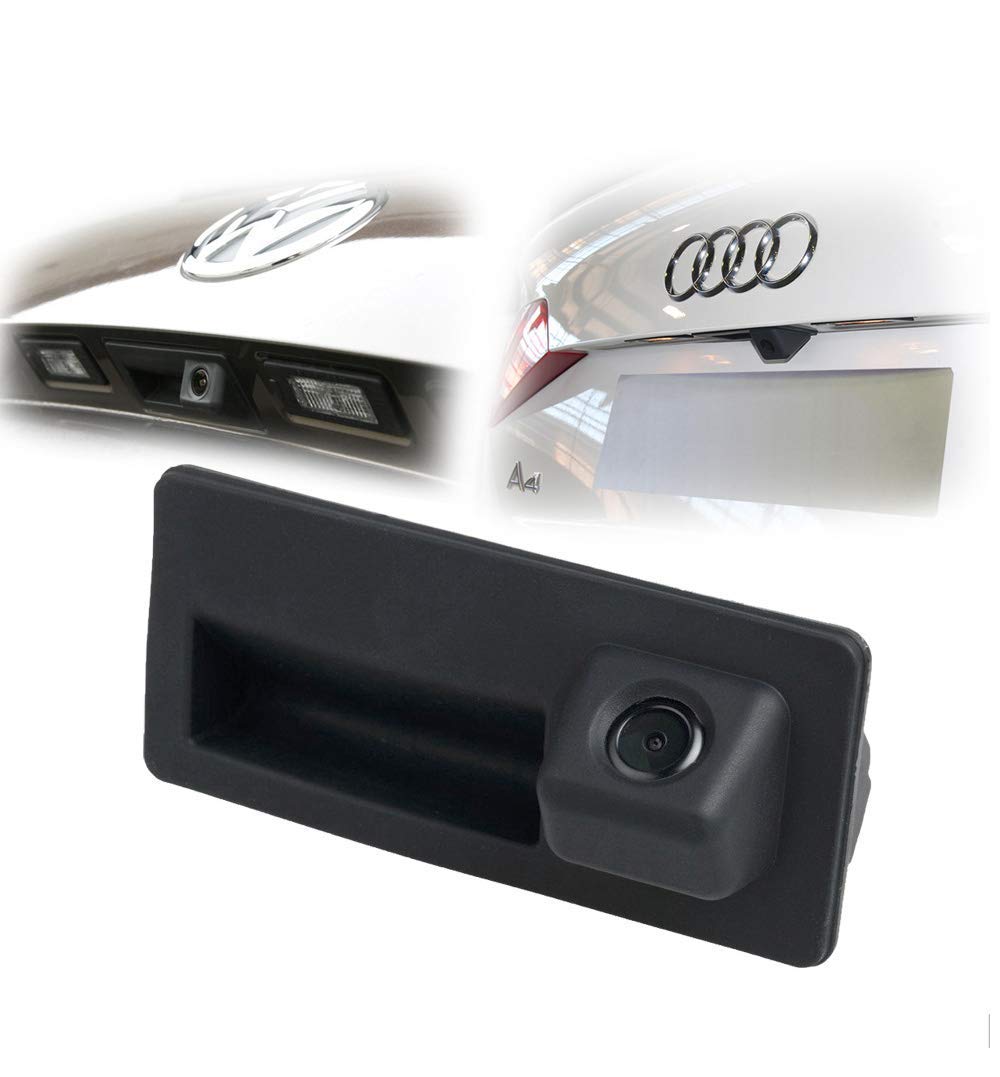

Backup Camera Handle Rear View HD Night Vision Reverse Parking Assistance for Audi A4/A5/A6 for VW Tiguan/Golf/Jetta/Passat/Touran/Touareg/Lavida/Sagitar/Caddy

1. Dimension113x50mm (4.45 Inchx1.97 Inch). Please check this is the same as your car camera handle. Please simply measure it!
2. Please check that there is RCA connection on the radio, otherwise it will not fit. The yellow interface of our camera must be with"CAMERA IN" interface of your navi or audio connected.
3. It does not fit on original VW radio Navi without RCA Connection, such as VW RSN 315 or RSN 510!


Features:
Sensor: CMOS sensor with night Vision
Horizontal resolution (TVL): 480TVL
Effective pixels:728x512 pixels
System: NTSC (Only NTSC Format)
Minimum illumination: 0.5lux / F1.2
Video cable: 6m long


Compatible with:
for Audi A4 (8K) / A5 / S5 (8T) / S4 B8 / Q3 / A6L / RS6
for VW Tiguan
for VW Golf VI Variant from 2010 / Golf Plus, Golf6 Plus
for VW Jetta 2011
for VW Passat from 2011, Passat 1/2007 Variant, Passat variant b7 3c 2011, Passat Kombi BJ 2012
for VW Sharan/Alhambra 2011
for VW Touran 2011,2011, 2014, 1T2, 1T3
for VW Touareg 2011
for VW Lavida
for VW Sagitar
for VW Caddy 4 (SA)
for VW T5 Facelift


Connecting line methods:
Yellow RCA plug: with the Navi radio or screen
Small "red" cable with the yellow RCA plug: It is the power supply for the reverse cable on the radio. Without it, the radio does not know that the reverse is in and does not switch automatically to camera. But it is only necessary if there is no can bus. Can Bus normally detects the reverse even if the cable is not connected.
Black cable: Black should be ground
Black / red: on reverse light +
Green cable: Distance scale Line( Yes/No) Switcher. If there is no parking lines, please cut the both green cables to show it.


Item Includes:
1x handle Reversing Camera
1x Power cable
1x Video cable
1x User Manual
