Radio Upgrade for Range Rover (L322) 2003-2004 Multimedia Navigation Android 11 iOS GPS CD DVD Bluetooth
PLUG AND PLAY MULTIMEDIA NAVIGATION UPGRADE
2003, 2004 RANGE ROVER HSE
- Perfect fit for your 2003 and 2004 RANGE ROVER HSE / SUPERCHARGED (L322) models.
- The best combination EVER with Android 11 Oreo system, high-end Rockchip processor of 4GB RAM, Octa-Core & 32GB ROM. You can enjoy an ultra-fast response and more fluent experience when running your favorites apps. No lags anymore.
- Split screen mode allows running two apps side by sideSplit screen mode allows running two apps side by side. And now, Android Oreo also allows apps to be viewed in Picture-in-Picture mode. (Note: PIP feature only applicable to Google Map & VLC.)
- Ability to stream Spotify and Pandora from your phone via Bluetooth to enjoy millions of songs you like, and make hands-free calling while driving. Also supports displaying song information & searching contacts rapidly.
- Support MirrorLink for both Android & iOS smartphone. And for Android phone, you can even achieve mutual control with a USB cable. Enjoying a full freedom with 7 inch HD touchscreen and helping you stay focus on the road.
- Eonon Model GA9166A, GA9166B, GA9201A, GA9201B, GA9449, R49
POWERFUL COMBINATION OF Newest ANDROID 11 OREO & 4G RAM
- DESIGNED FOR BMW X5 2000-2006 (E53) BUT ALSO FITS 2003 and 2004 RANGE ROVER (L322)
- ANDROID 8.0 OREO
- 4G RAM, OCTA-CORE & 32G ROM
- SPLIT SCREEN AND PIP MULTITASKING

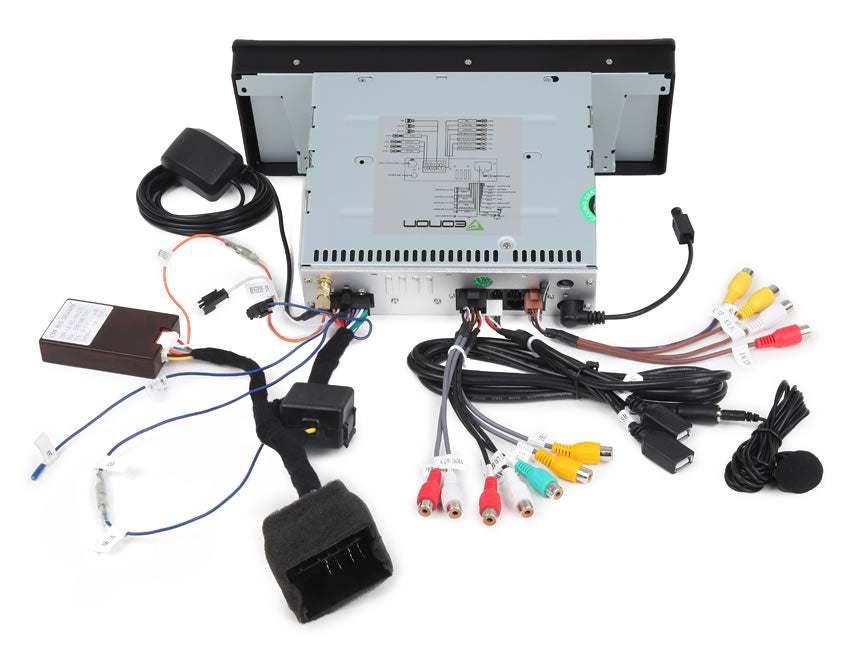

- COMES WITH A FREE 5.5M EXTENSION HARNESS
APPLICABLE MODELS

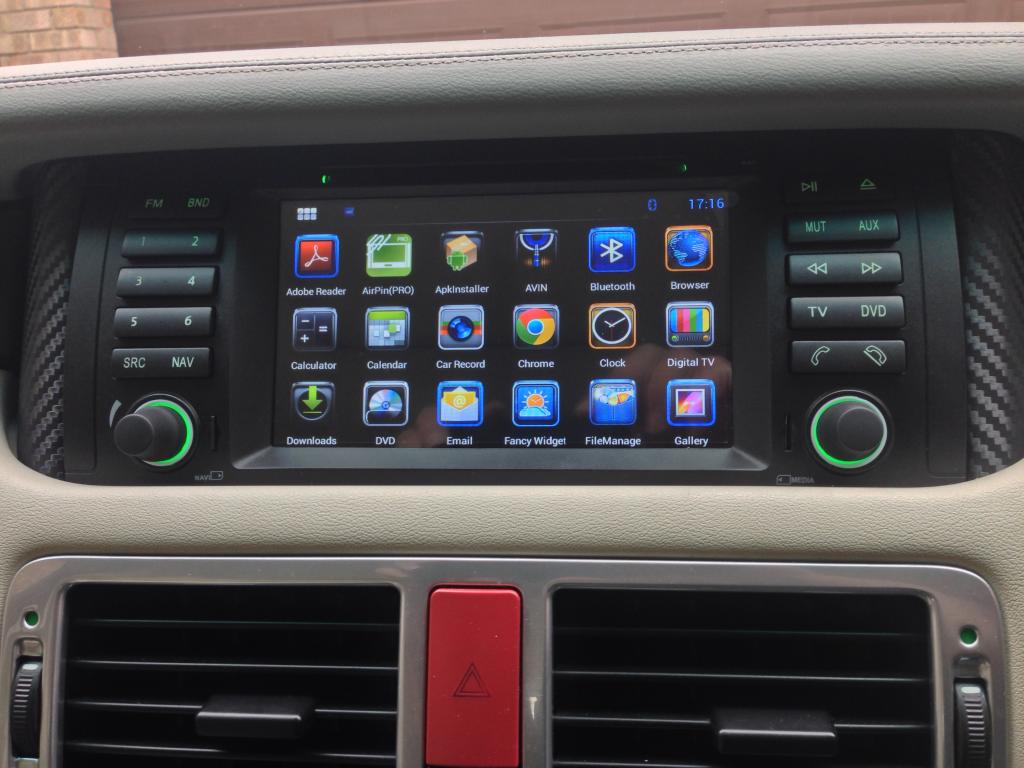

RANGE ROVER 2003, 2004
(Note: Please confirm the model year, size and shape of the center console panel before purchasing. And consult our customer service first if your car is beyond the scope of application.)
ANDROID 11 OREO
Thanks to the newest Android 8.0 Oreo helps minimize background activity in the apps you use least to give faster startup speeds. Also the all-new Google Play protect, helping to ensure none of your apps become compromised, and keeping your device safer.
REDESIGNED SETTINGS MENU
The reorganized menu makes the Settings area as simple and straightforward as possible. Also it supports customizing and rearranging the Quick Settings to access what you want faster.
SNOOZE INDIVIDUAL NOTIFICATIONS
Press the notification dots to quickly see what's new, then easily clear them by swiping away. You can also tap the clock icon to snooze the notification, and the snooze time can be set.
THE ALL-NEW USER INTERFACE
With the intuitive and driver-friendly user interface, you can customize the way you’re notified, and what your display looks like.
PERFORMANCE REDEFINED WITH THE HIGH-END ROCKCHIP PROCESSOR
More advanced than ever before. The first 4G RAM Eonon car stereo, with octa-core and 32G ROM all in one to deliver faster performance to allows you to get into your favorite apps at supersonic speed. Takes your operating pleasure to the next level.
DO MORE AT THE SAME TIME
Split screen mode allows running two apps side by side. You can use Spotify while navigating, or visit the website while listening to the radio. And now, Android Oreo also allows apps to be viewed in Picture-in-Picture mode. (Note: PIP feature only applicable to Google Map & VLC.)
HANDS-FREE CALLING AND AUDIO STREAMING
Ability to stream Spotify and Pandora from your phone via Bluetooth to enjoy millions of songs you like, and make hands-free calling while driving.

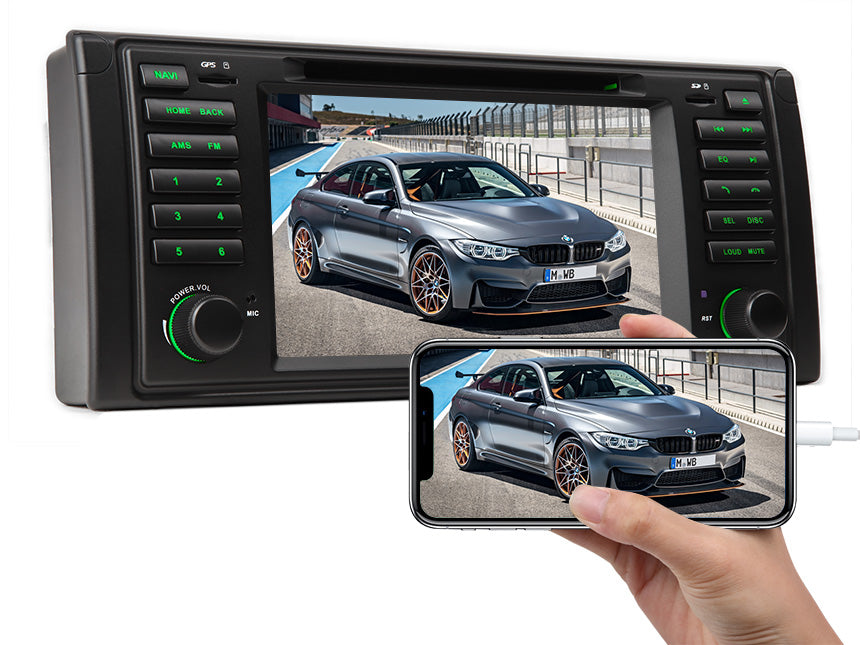

STAY CONNECTED TO YOUR PHONE
You can connect your iPhone wirelessly or Android smartphone via USB cable to access some of your favorite apps directly on car dash. For Android, you can even experience a bidirectional control between your phone and the unit. Enjoying a full on-screen access experience through the large and clear touchscreen, and helping you stay focus on the road.
NEVER WORRY ABOUT GETTING LOST
Navigation can be achieved easily by using the online, offline map or purchasing a map card. It can quickly run all navigation apps like Google Maps, Waze etc, and offer up-to-date roadway information and concise driving directions.
SO REAL YOU CAN FEEL IT
The 7 inch digital capacitive touchscreen with 1024x600 high resolution makes scenes more real than ever before, and gives you a precise fingertip control experience.
STEERING WHEEL CONTROL FOR SAFER IN-CAR OPERATION
Compatible with most of steering wheel control functions. Easy to switch songs, channels and adjust volume to help you to minimize distractions and keep eyes on the road.
USING INTERNET ANYWHERE JUST GOT EASIER
Using your smartphone to create a WiFi hotspot, or purchasing a 4G dongle. So many ways for internet accessing. You can watch online movies, browse website or download a great road trip app with no worries.
DASHCAM READY FOR DRIVING PEACEFULLY
It can record everything in front of you while you drive. If accident occurs HD video can be saved in SD card or USB for avoiding false accusations and insurance claims. (Note: Eonon R0008 dashcam need to be purchased separately.)
IMMERSE YOURSELF IN A CD-LIKE SOUND EXPERIENCE
With the Eonon V0054 DAB+ radio receiver, you can enjoy more of your favorite digital audio broadcasting radio channels with superior CD-like sound quality. (Note: Eonon V0054 DAB+ box need to be purchased separately.)
SEE CAR PERFORMANCE IN REALTIME
Support Bluetooth OBD2 diagnostic scanning, used with the Torque app to get OBD fault codes, car performance, sensor data and more in realtime. (Note: Eonon V0056 OBD2 need to be purchased separately.)
OTHER FEATURES
-
30 PRESET RADIO STATIONS
(18 FM, 12 AM) -
EQ MODE
CUSTOM ROCK POP CLASSIC JAZZ FLAT VOICE -
1S BOOT TIME
(NOTE: 1S REFERS TO THE TIME OF WARM START.) -
VIDEO OUTPUT
TRANSFER ONLINE, OFFLINE VIDEO TO HEADREST MONITOR -
BUILT-IN DIMMER
DAY & NIGHT -
USB / MICRO SD
SUPPORTS USB FLASH DRIVE, MP3 PLAYER & MICRO SD CARD WITH UP TO 64GB OF STORAGE
| General | |
| Specific car models | RANGE ROVER (L322) - Note: Please confirm the model year, size and shape of the center console panel before purchasing. And consult our customer service first if your car is beyond the scope of application. |
| Installation type | ISO 1 DIN Size |
| Installation Size | 178(Length)×172(Width)×50(Height)mm |
| Panel Size | 287 (Length) x 128 (Width) mm |
| Gross Weight | 4.1 kg |
| Net Weight | 2.05 kg |
| Power Supply | DC 12V |
| Max Working Current | ≤10A |
| Steering Wheel Control Function | Yes |
| Menu Language | 85 kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/Polish, etc. |
| Auto-memory Function | Yes |
| External MIC Support | Yes |
| Operation System | Android 8.0 Oreo System |
| CPU Processor | PX5 1.5GHz Cortex A53 Octa-core |
| RAM | SAMSUNG DDR3, 4GB |
| Memory | 32GB |
| Mutual Control Between HU & Phone | Yes (Supports Mutual Control Between Head Unit & Your Android Smart Phone. Supports Screen Mirroring features with iOS DEVICES, but does not support mutual control with them.) |
| Screen | |
| Type | 7 Inch HD Digital Capacitive Touch Screen |
| Resolution | 1024*600WVGA |
| Touch Screen Function | Yes |
| Changeable Startup Logo | Supports customize startup logo |
| Built-In LCD Clock Display Function | Yes |
| Built-in LED Button Color Options | 9 kinds of LED button colors for your choice |
| Dynamic Background Pictures | Supports switch dynamic background image and customize the screen background |
| Image Brightness Adjustable | Yes |
| Support One Key Screen Off | Yes |
| DVD | |
| Compatible Format | AVI/DVD/DVD+R/DVD-R/DVD+RW/DVD-RW/MP3/CD/CD-RW/JPEG |
| Bluetooth | |
| Make and Receive Calls Hands Free | Yes (Compatible with devices with Bluetooth 3.0, including smartphones from Apple, Samsung, HTC, Sony, etc.) |
| Bluetooth MP3 Player Function | Yes (This function is only compatible with devices supporting Bluetooth Audio Output) |
| Built-in Microphone | Yes |
| Support Bluetooth Phonebook Function | Yes |
| Support Bluetooth Contact Search | Yes |
| Connect Code | 5802 (Name: EONON) |
| Support Bluetooth Contact Sharing | Yes |
| OBD-2 | Supports most Bluetooth ELM327. (Note: Designed for Eonon V0056 OBD2 diagnostic tool, please purchase it from Eonon online shop.) |
| TV & Radio | |
| Radio Stations | 30 Stations Memory(18FM&12AM) |
| Built-In RDS Radio Receiver Function | Yes |
| Radio Frequency Region | China, Europe, Orit, Russia, America 1, America 2, Japan, Australia. |
| Audio & Video | |
| Max power | 4x45W Surround Stereo |
| EQ (Effect Compensation) | Custom Rock Pop Jazz Classic Flat Voice |
| Built-in Microphone in the control panel | Yes |
| Input & Output | |
| RCA Audio/Video Output | Yes |
| AUX Audio/Video input | Yes |
| Back Sight Input to Camera | Yes |
| Built in Amplifier | Yes |
| USB/SD slot maximum compatibility | Supports USB flash drive, MP3 player and Micro SD card with up to 64GB of storage |
| Subwoofer Output | Yes |
| GPS Antenna Input | Yes |
| USB/SD Supported Video Formats | Supports AVI, MKV, MP4, WMV, RMVB, MPG...All Android videos formats, Web video and 1080P video decoding |
| Audio Formats | Supports MP3, WMA, WAV, AC3, OGG, FLAC, Web audio and etc. |
| Picture Formats | Supports JPEG, BMP, PNG,TIFF and etc. |
| 3G/WIFI Input | Yes |
| FR/FL/RR/RL Four Speakers Output | Yes |
| Built in amplifier FR/FL/RR/RL 4-Channel Audio Output | Yes |
| Support Video Output from All Modes | Yes |
|
|
