722.9 Sensor Y3/8n1 & Y3/8n2 + Punch Tool For Mercedes Benz 7G Auto Transmission
Application:
Mercedes A/CL/CLC/CLK/CLS/E/G/GL/GLK/ML/R/S/SL/SLK Class (2000-2011)
SsangYong (2008-2011)
Common fault codes are:
Fault code P 2767 The signal from component Y3/8n2 ( Internal speed sensor (VGS)) in not available.
Fault code P 2768 Component Y3/8n2 ( Internal speed sensor (VGS)) is defective.
Fault code P 0717 The signal from component Y3/8n1 ( Turbine speed sensor (VGS)) is not available.
Fault code P 0718 Component Y3/8n1 ( Turbine speed sensor (VGS)) is defective
Common fault codes are:
Fault code P 2767 The signal from component Y3/8n2 ( Internal speed sensor (VGS)) in not available.
Fault code P 2768 Component Y3/8n2 ( Internal speed sensor (VGS)) is defective.
Fault code P 0717 The signal from component Y3/8n1 ( Turbine speed sensor (VGS)) is not available.
Fault code P 0718 Component Y3/8n1 ( Turbine speed sensor (VGS)) is defective

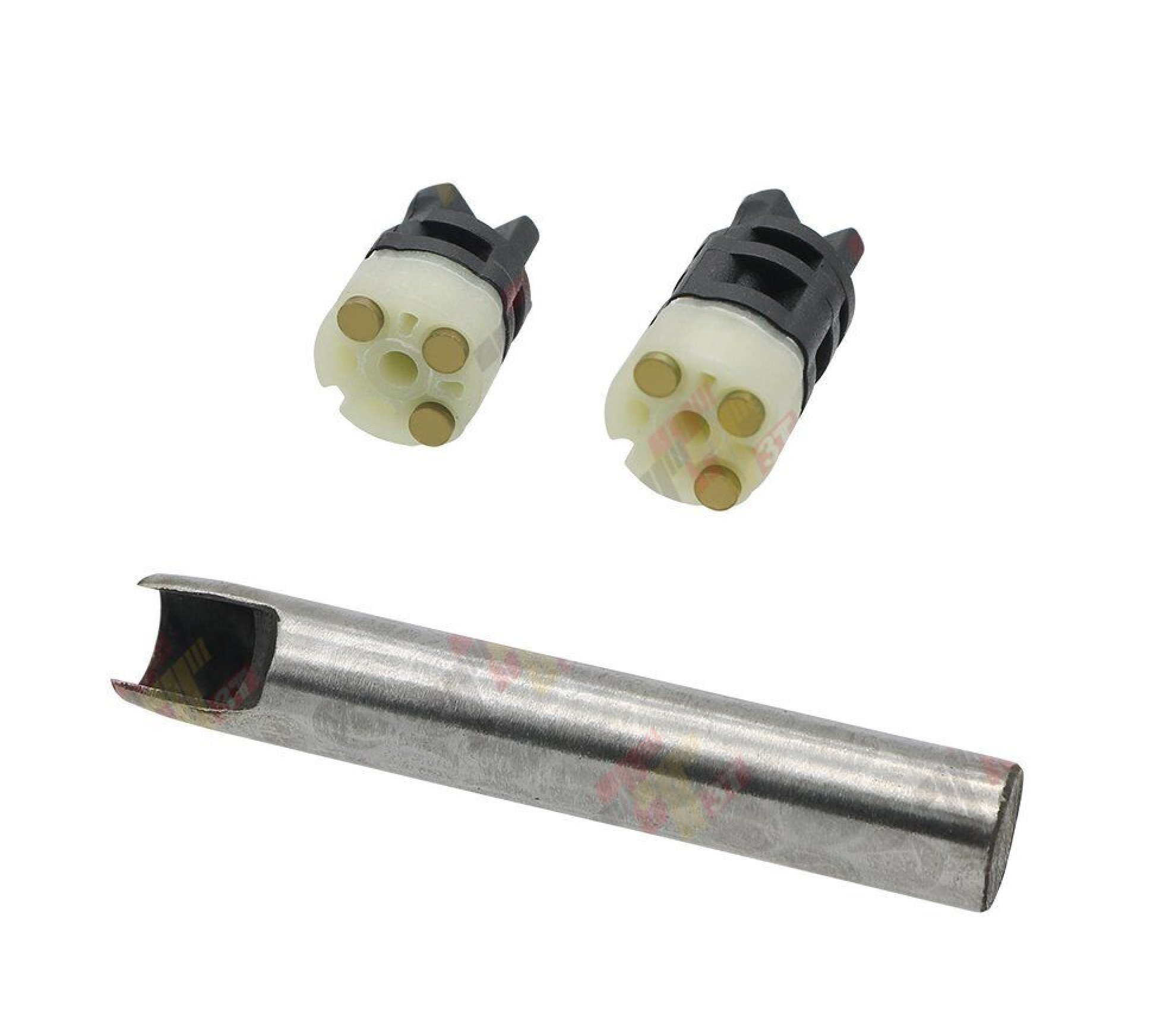

Package including:

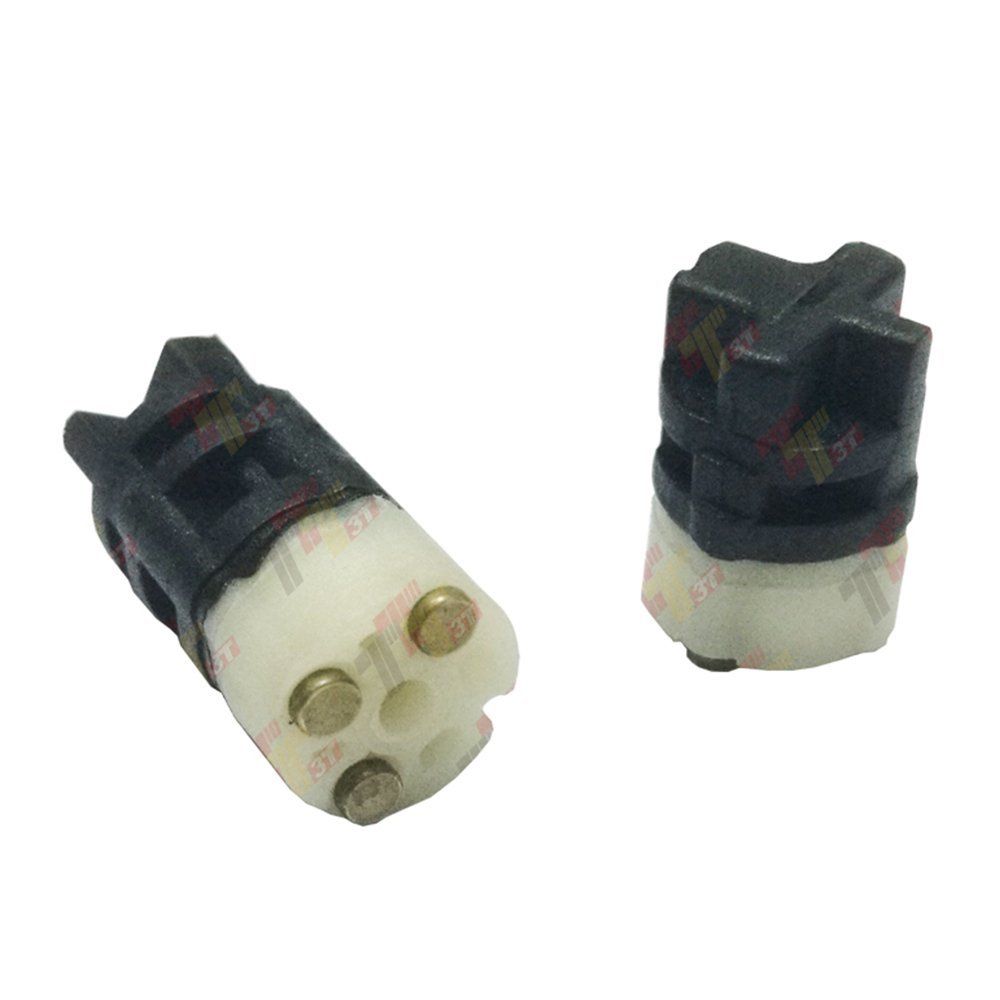

- (1 pair) New Auto Transmission 722.9 Sensor Y3/8n1 & Y3/8n2

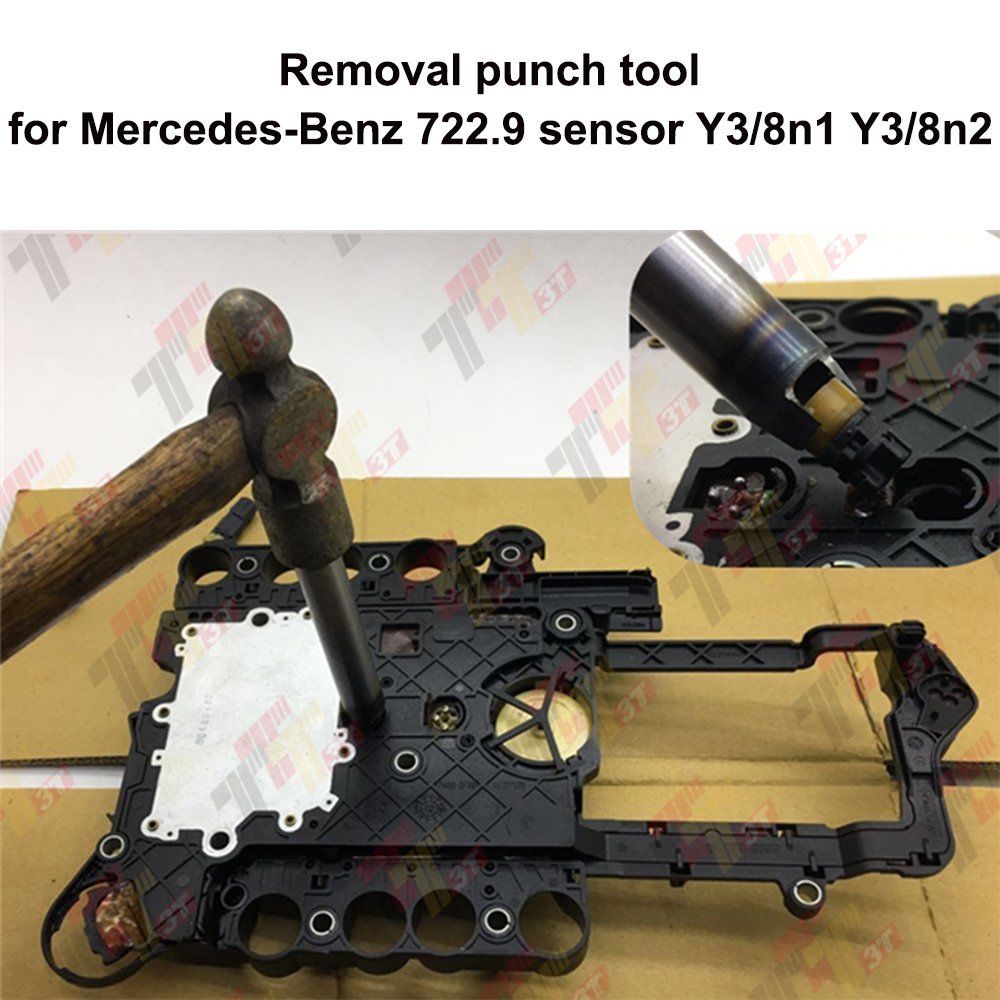

- (1 qty) Special Punch Tool
Application:
|
Model |
Years |
Country |
Transtype |
Engine Type/Size |
Trans Model |
Remarks |
|
MERCEDES A CLASS |
00-11 |
CHN EGY DEU MYS ZAF VNM |
7 SP R/AWD |
L4 2.2L V6 2.5L 3.0L 3.5L V8 6.3L |
W7A700 |
722.9 |
|
MERCEDES A CLASS |
07-11 |
EGY |
7 SP R/AWD |
V6 3.0L V8 6.3L |
W7B700 |
722.9 |
|
MERCEDES A CLASS |
07-11 |
EGY DEU VNM |
7 SP R/AWD |
V6 2.5L 3.0L 3.5L |
W7X550 |
722.9 |
|
MERCEDES CL |
07-11 |
DEU |
7 SP R/AWD |
V8 5.0L 5.5L 6.3L |
W7A700 |
722.9 |
|
MERCEDES CLC |
03-11 |
BRA |
7 SP RWD |
V6 2.5L 3.5L |
W7A700 |
722.9 |
|
MERCEDES CLK |
08-11 |
DEU |
7 SP RWD |
V6 2.5L 3.0L 3.5L V8 5.0L 5.5L 6.3L |
W7A700 |
722.9 |
|
MERCEDES CLS |
04-11 |
DEU |
7 SP R/AWD |
V6 3.0L 3.5L V8 4.6L 5.0L 5.4L 5.5L 6.3L |
W7A700 |
722.9 |
|
MERCEDES CLS |
10-11 |
DEU |
7 SP RWD |
V8 6.3L |
W7B700 |
722.9 |
|
MERCEDES E CLASS |
02-11 |
CHN EGY DEU IND IRN MYS THA VNM |
7 SP R/AWD |
L4 2.2L V6 2.5L 2.6L 3.0L 3.5L V8 4.0L 5.0L |
W7A700 |
722.9 |
|
MERCEDES E CLASS |
09-11 |
DEU |
7 SP RWD |
V8 5.5L 6.3L |
W7B700 |
722.9 |
|
MERCEDES E CLASS |
09-11 |
DEU |
7 SP R/AWD |
V6 3.0L 3.5L V8 5.5L |
W7X550 |
722.9 |
|
MERCEDES G WAGON |
06-11 |
AUT |
7 SP AWD |
V6 3.0L V8 4.0L 4.6L 5.5L |
W7A700 |
722.9 |
|
MERCEDES GL CLASS |
06-11 |
USA |
7 SP AWD |
V6 3.0L V8 4.0L 4.6L 5.5L |
W7A700 |
722.9 |
|
MERCEDES GLK |
08-11 |
DEU |
7 SP R/AWD |
L4 2.2L V6 3.0L 3.5L |
W7X550 |
722.9 |
|
MERCEDES GLK |
09-11 |
DEU |
7 SP R/AWD |
V6 3.0L |
W7A700 |
722.9 |
|
MERCEDES ML CLASS |
05-11 |
USA |
7 SP R/AWD |
V6 3.0L 3.5L V8 4.0L 4.6L 5.0L 5.5L 6.3L |
W7A700 |
722.9 |
|
MERCEDES R CLASS |
05-11 |
USA |
7 SP R/AWD |
V6 3.0L 3.5L V8 4.6L 5.0L 5.5L |
W7A700 |
722.9 |
|
MERCEDES S CLASS |
05-11 |
EGY DEU IND IDN MYS THA |
7 SP R/AWD |
L4 2.2L V6 3.0L 3.5L V8 4.0L 4.3L 4.6L 5.5L |
W7A700 |
722.9 |
|
MERCEDES S CLASS |
06-11 |
DEU |
7 SP R/AWD |
V6 3.0L 3.5L V8 4.6L 5.5L |
W7X550 |
722.9 |
|
MERCEDES SL |
05-11 |
DEU |
7 SP R/AWD |
V6 3.0L 3.5L V8 5.0L 5.5L |
W7A700 |
722.9 |
|
MERCEDES SL |
07-11 |
DEU |
7 SP R/AWD |
V8 6.3L |
W7B700 |
722.9 |
|
MERCEDES SLK |
05-11 |
DEU |
7 SP R/AWD |
L4 1.8L 2.2L V6 3.0L 3.5L V8 5.4L 5.5L |
W7A700 |
722.9 |
|
SSANGYONG CHAIRMAN |
08-11 |
PRK |
7 SP R/AWD |
V6 3.2L 3.6L V8 5.0L |
W7A700 |
722.9 |
